EPS thermal insulation boards - Dalmatina

product_code: Dalmatina

Description:

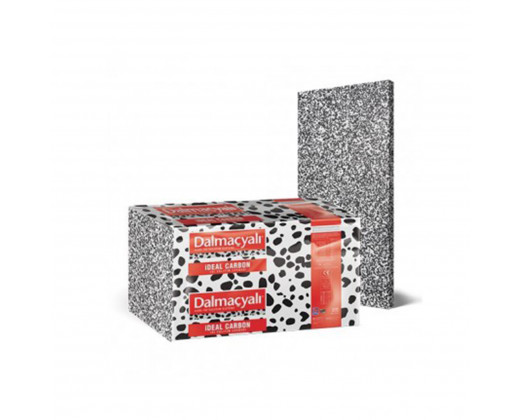

BETEK TECT DALMATINA INSULATION BOARD - Thermal Insulation Board - Dalmatian EPS
(Size of the Plates 100 x 50 cm)
Description: Expanded polystyrene foam "Dalmatian" is a widely used insulation material produced from high quality raw materials from leading European manufacturers. Maximum effect is achieved at low price and high quality.
Thermal conductivity: EPS DALMATINA - λ = 0.034
Density - 16-18 kg/m3
System reaction to fire class: EN 13499 - (B-s1, d0)



DIMENSIONS AND PACKAGING

Sheet dimensions:
Thickness - 20 mm, width - 500 mm, length - 1000 mm
 1 package:
 0.25 m3
 1 package:
 12.5 m2
 1 package:
 25 sheets

Sheet dimensions:
Thickness - 30 mm, width - 500 mm, length - 1000 mm
 1 package:
 0.24 m3
 1 package:
 8.0 m2
 1 package:
 16 sheets

Sheet dimensions:
Thickness - 50 mm, width - 500 mm, length - 1000 mm
 1 package:
 0.25 m3
 1 package:
 5.0 m2
 1 package:
 10 sheets

Sheet dimensions:
Thickness - 80 mm, width - 500 mm, length - 1000 mm
 1 package:
 0.24 m3
 1 package:
 3.0 m2
 1 package:
 6 sheets

Sheet dimensions:
Thickness - 100 mm, width - 500 mm, length - 1000 mm
 1 package:
 0.25 m3
 1 package:
 2.5 m2
 1 package:
 5 sheets
